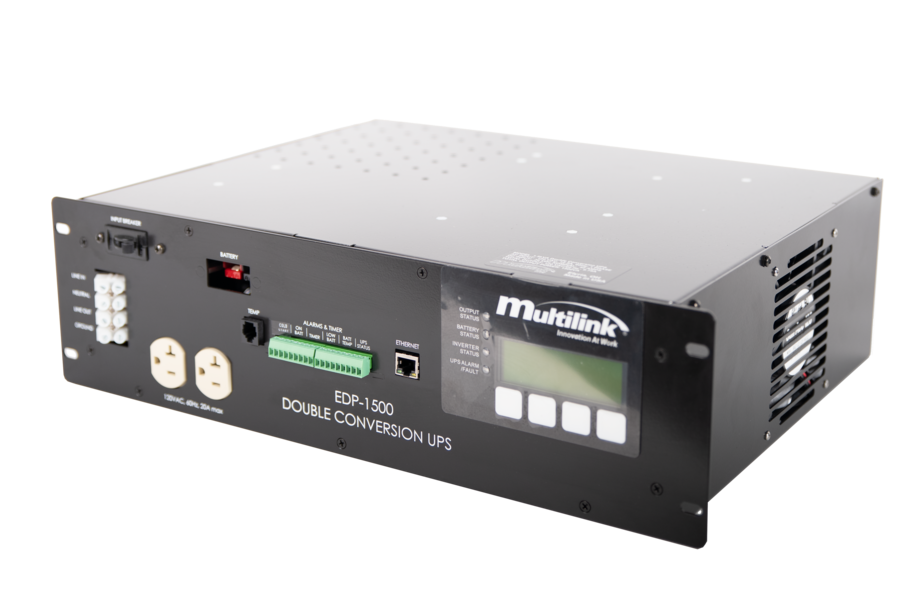

EDP 1500
The Multilink EDP 1500 Double-Conversion UPS is an uninterruptible power supply with an output capacity of 1100W. The EDP is designed to provide high quality, stable AC power to critical equipment that requires continuous, regulated power. With a pure sine wave output, Multilink's double-conversion UPS provides less electrical interference to sensitive loads with zero loss in output power. With 4 LEDs and a 4 line LCD display, UPS operating statistics scroll across the screen to provide at-a-glance monitoring. Ethernet connectivity is standard and includes an on-board web page for status monitoring and configuration. Compatibility with generators using the Safety Automatic Transfer Switch (SATS) provides lasting back-up power during long utility outages and low battery shutdown. With 3 models to choose from, our EDP Double-Conversion UPS is scalable to provide the most efficiency with superior confidence any network environment.
EDP 1500 Specifications
| General Specifications | |
|---|---|
| Stock ID | 010-029-20 |
| Nominal Voltage | AC Input - 1.5kVA @ 120V AC Output - 1100W @ 120V |
| Voltage Distortion | Linear Load - 3% Max. Non-Linear Load - 7% Max. |
| Frequency | 60Hz |
| Battery Type | AGM GEL |
| Voltage Range | 55V - 150V (Load Dependant) |
| Input Protection | 20A Breaker |
| Transient Voltage Regulation | Input Voltage Step - ±5% Max. 100% Step Load - ±5% Max. |
| Heating & Cooling | Forced convection w/ cooling fans |
| Battery Backup Time | Up to 8 Hrs. or Longer |
| Frequency Range | Input: ±8% Output: ±2% Battery Operation: ±1% Max. |
| Overcurrent Capacity | 110% for 10 minutes 200% for .05 seconds 150% for 10 seconds (45 second interval) |
| Voltage Regulation | ±2% Max. |
| Construction | DSP (Digital Signal Processing) & IGBT throughout |
| Power Factor | AC Input - 0.95 Min (<1% Input Voltage Distortion / Lag) AC Output - 0.7 |
| Overcurrent Protection | Bypass Non-Hit Change (Auto Return) |
| Phase | AC Input - Single-Phase / 2 Wire AC Output - Single-Phase / 2 Wire |
| Physical Specifications | |
| Depth | 13.875" |
| Width | 17.0” |
| Height | 5.25” |
| AC Output Specifications | |
| Output Power | 1100W |
| NetPower Ethernet Communications Specifications | |
| Protocols | TCP/IP HTTP SNMP SNTP SMTP NTCIP FTP UDP Telnet SSH TFTP |
| Environmental Specifications | |
| Operating Temperature | -34°C(-29°F) to +74°C(165°F) |
| Safety Standard Specifications | |
| Safety Standard | UL1778:2014 Ed. 5 CSA 22.2#107.3:2014 Ed.3 NEMA TS-2-2016v03.07 |
| Ethernet Communication Card Specifications | |
| CPU | Microchip PIC24HJ128/ENC44J600 |
| Memory | 1MB Flash |
| Peripherals | Real Time Clock |
| Software | Microchip |
| Network Interface | 10/100 BaseT with Auto-Detect |
| Connection | RJ45 with LED's |
| Power Supply | 12-60VDC, 200mA max |
| Protocols | TCP/IP HTTP SNMP SNTP SMTP NTCIP FTP UDP SSH TFTP |
| Humidity | 5 to 95% |
| Mounting | Embedded Card on Front Panel |
| Connectors | RJ11; Two, Nine Position Terminal Blocks |
| Web Browsers | Chrome IE FireFox Safari Edge |
| Operating Systems | Windows OS Linux |
| Firmware Upgrades | Embedded webpage or TFTP upgradeable |
