Optima

The Optima Series Cross Connect offers you options with designing your FTTX network. The Optima S allows the ability to perform Mid-Entry on your main fiber while performing Fiber Splicing and drop deployment within the unit while the Optima T provides the end Fiber Tap deployment. Both units are available in 4 – 8 – 12 port terminal configurations utilizing SC or LC connectors to meet your network or budget requirements. Designed to meet Telcordia Standards, the Optima Series provides durability and reliable operation in your network. Various mounting capabilities allow for use in various network applications or design.

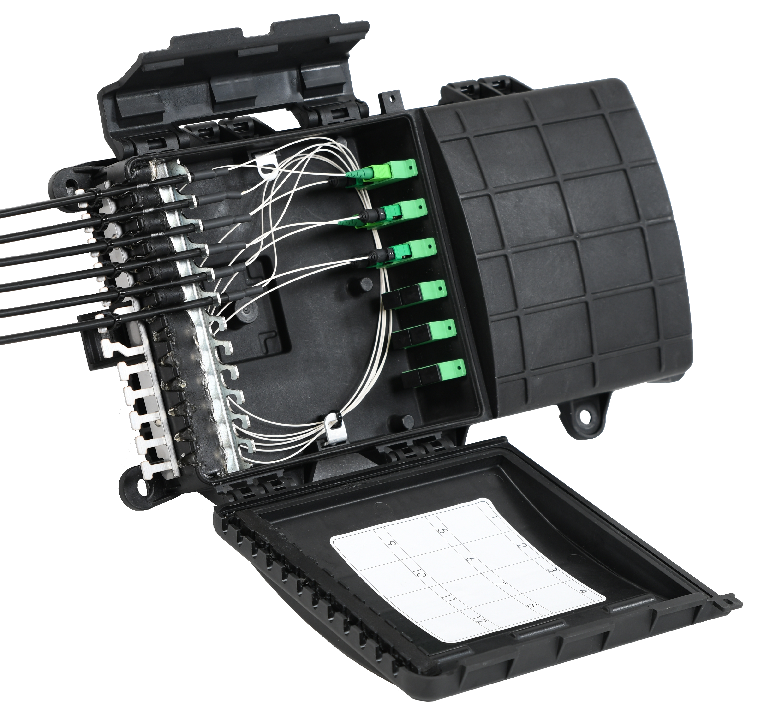

Optima™ T



Port Terminations

The Optima™ T is available with 4, 8, or 12 port terminations. Each termination has its own exit port for easy drop fiber labeling & management.

Adapters

The adapter footprint is capable of housing either SC Duplex or LC Quad adapters. Each has its own mounting position that can be tightly secured and easily accessed inside of the enclosure.

Fiber Optic Cable

The Optima™ T is capable of accepting up to a 12 count Flat Drop or Round Drop fiber. It houses 2 input access points on the back side of the enclosure. Each input can be tightly secured with an innovative grommet system.

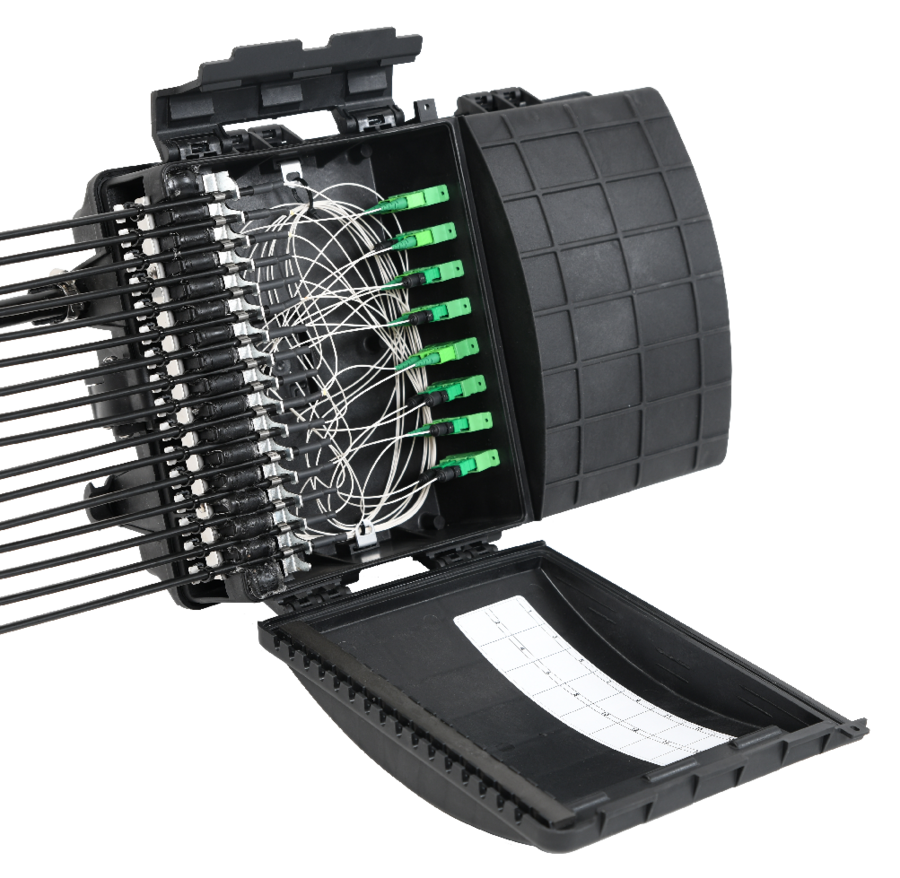

Optima™ S

Port Terminations

The Optima™ S is available with 4, 8, or 12 port terminations. Each termination has its own exit port for easy drop fiber labeling & management.

Adapters

The adapter footprint is capable of housing either SC Duplex or LC Quad adapters. Each has its own mounting position that can be tightly secured and easily accessed inside of the enclosure.

Fiber Optic Cable

The Optima™ S is capable of accepting up to a 12 count Flat Drop or Round Drop fiber. It houses 2 input access points on the back side of the enclosure. Each input can be tightly secured with an innovative grommet system.

COST EFFECTIVE

OptiDrop™

The Optima™ was developed to utilize Multilink's OptiDrop™ connectors, making it the most cost effective FTTH closure on the market. The OptiDrop™ cable and connector and come pre-terminated OR can be field installed.

Bulk Cable

The use of the OptiDrop™ connector gives this closure the ability to take advantage of bulk fiber use. The field installable connector allows technicians to create custom drops utilizing their bulk fiber, saving both inventory and warehouse costs.

SERVICE INSTALLATION

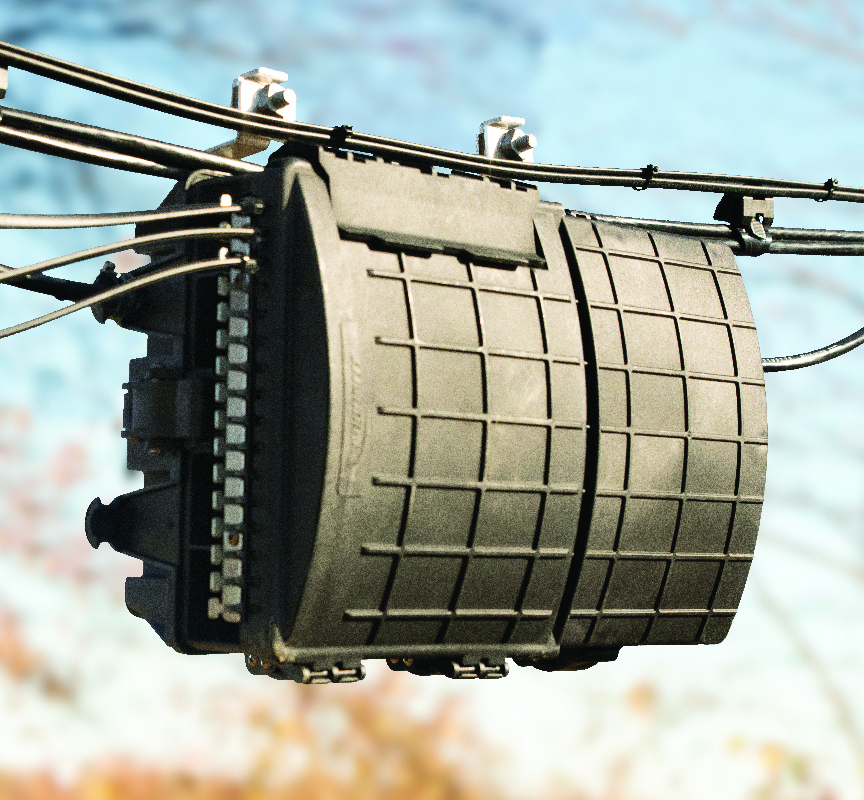

Aerial Service

Available in 4, 8 & 12 port configurations for residential distribution, also allowing pass through network designs. Compact size, comparable to typical line equipment.

Surface/Wall Mounting

Providing fiber solutions to various MDU or single tenant buildings. The Optima™ has a compact size for wall mounting capabilities and can be placed in demarcation areas.

Pedestal Service

Vertical mounting capabilities allow both feeder and distribution drop fibers to enter and exit from a single side of the Optima™. Compact in size, allowing it to be mounted inside 10" wide pedestals

Vault Service

Similar to dome splice enclosures, the Optima™ allows a one sided entry for both feeder and distribution drop fibers.
